FRP Refrigerated Truck Body Box 150 Sets Per Month Customizable Size

FRP Refrigerated Truck Body Box 150 Sets Per Month Customizable Size

Cuota De Producción: 1
Price: 2500
Información detallada
Tipo de transmisión:
Manual
Caballo de fuerza:
<150hp
Combustible:
Diesel
Peso:
Luz de peso
Conductividad del calor:
0.20W/m².K (FRP), 0.018-0.028W/m².K (espuma de poliuretano)
Transferencia de calor:
<0.3W/m².K
Retardante de fuego:
Nivel B1
Vida útil:
4-6 veces más
Material:
Piel externa/interna FRP, núcleo de espuma de poliestireno
Construcción:
Panel sándwich, marco de acero
Caza de focas:
Adhesivo y remache de alta resistencia
Material de piso:
Panel de aluminio figurado
Resistencia a la superficie:
Alta tracción, flexión, resistencia al impacto
Resistencia química:
Ácido, álcali, resistente al agua de lluvia
Opciones de refrigerador:
Estados Unidos, alemán o chino hecho
Resaltar:

FRP refrigerated truck body box

,

customizable refrigerated truck box

,

refrigerated truck box with warranty

Descripción del producto

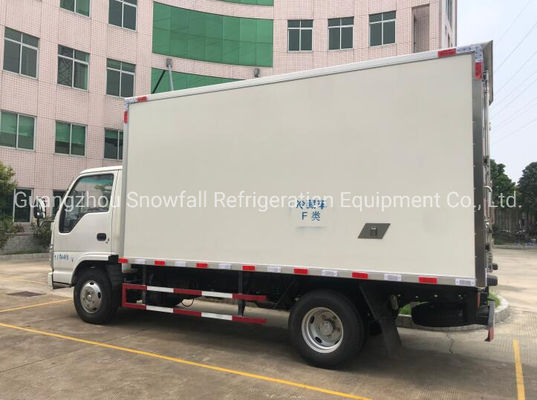

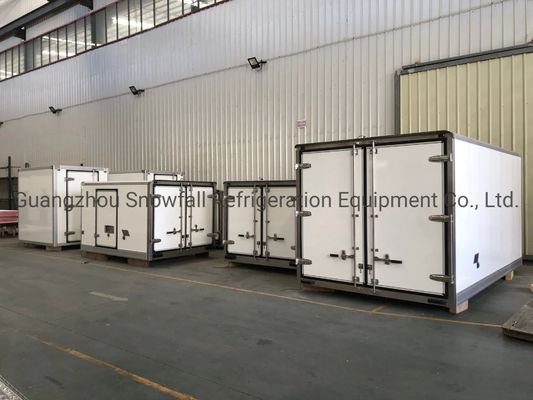

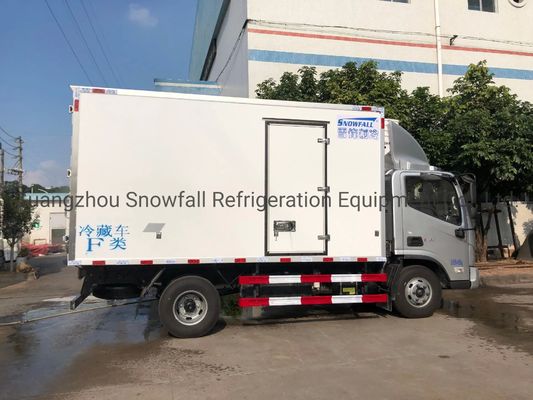

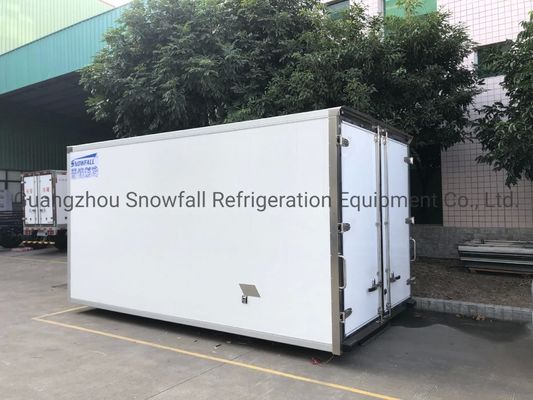

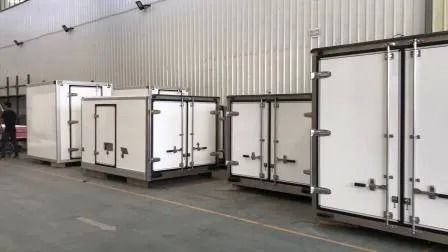

FRP CBU Refrigerated Truck Body Box
High-performance refrigerated truck body designed for optimal thermal insulation and durability in transportation applications.
Material & Performance
  • New type FRP (Fiberglass Reinforced Plastic) used for outer and inner skin
  • Sandwich panel construction with extruded polystyrene foam core for superior thermal insulation
  • Panels fixed to steel frame with high-strength adhesive and rivets for structural integrity
Construction
  • Fully enclosed structure with panels adhered using high-strength structural adhesive
  • Designed for reliable sealing and insulation properties
  • Modular construction for easy and fast assembly
Specifications
Door Panel: High-accuracy manufacturing process with imported sealing rubber for optimal airtightness and thermal insulation
Finishing: Decorated with aluminum alloy or stainless steel edges, corners, hinges, locks, and hangers
Protection: Guardrails installed on sides and rear with integrated lighting system
Floor: Reinforced design with figured aluminum floor panel for high load capacity and wear resistance
Customization: Available in various configurations to meet specific material, structural, and refrigeration requirements
Temperature Zones: Optional interior compartments for maintaining different temperature zones
Key Properties
  • Lightweight: 30-40% lighter than traditional domestic products
  • Thermal Insulation: Overall heat transfer coefficient (K-value) below 0.3W/m².K
  • Durability: High tensile strength, bending strength, and impact resistance
  • Weather Resistance: Excellent chemical stability against rain, acid, and alkali
  • Impermeability: Excellent water resistance on both FRP surfaces
  • Fire Safety: Complies with national standard B1 fire retardant level
  • Longevity: 4-6 times longer service life than traditional products
  • Maintenance: Repairable without visible traces on panel surface
  • Eco-Friendly: No volatile or corrosive substances; uses fluorine-free polystyrene foam
  • Refrigeration Options: Available with USA, German, or Chinese refrigeration units
Our FRP refrigerated truck bodies have been exported worldwide and maintain an excellent reputation for quality and performance.
